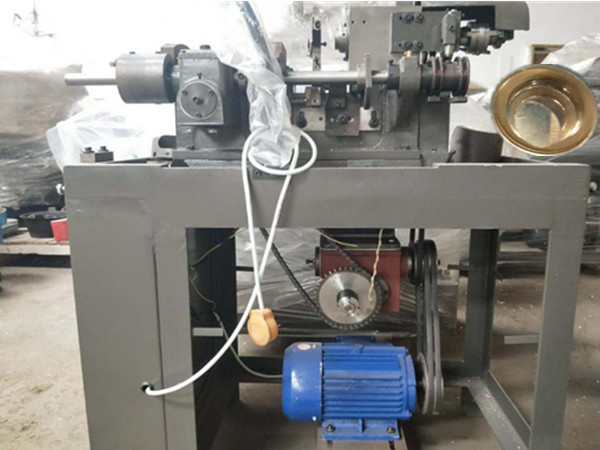

Plug Processing Equipment
CNC system for cam shaft grinding machine,by the method, the cam machine can be designed accurately.Intermitten constuction of toothed sector conjugate cam ensures machine accurate and lower noise at high speed.
Item NO.:
SH-D25SOrder(MOQ):
1Payment:
TT/LCProduct Origin:
ChinaColor:
GreyShipping Port:
NingpoLead Time：
30 daysPlug Processing Equipment
The Plug Processing Equipment operator 1 person can control 20-25 equipment.
|
Name & Model No.
|
Cam machine
|
SH-D25S
|
|
|
The parameters of the equipment are as follows
|
|||
|
Name
|
Unit
|
Specification
|
Note
|
|
Spindle bore
|
mm
|
Ф20 (fixture m26*1.5*84-95）
|
|
|
main shaft structure
|
the first and the last
|
HRB
|
|
|
spindle motor
|
kw
|
2.2
|
|
|
main shaft speed
|
2200rpm
|
Chain type variables corresponding to the tooth
|
|
|
Height of the center of the knife
|
cm
|
19（can grind according to product ）
|
|
|
Toothed shaft
|
Matching of teeth with straight single full pass axis |
|
|
|
Workpiece clamping mode
|
Post three claw fixed tooth straight clamp
|
|
|
|
Electric cabinet box
|
Connector combination
|
|
|
|
Weight
|
300kg |
|
|
|
Model No.
|
Product
|
Process
|
Processing time / PCS
|
Note
|
|
SH-D25S
|
16CM Plug
|
Interior hole plane
|
5 seconds* 9 hours=6400
|
|
|
SH-D25S
|
16CM Plug
|
nterior groove outer diameter
|
6 seconds* 9 hours=6400
|
|
|
SH-D25T
|
16CM Plug
|
buff
|
5 seconds* 9 hours=6400
|
|
Our Service:
Before sales
Our professional technical recommend the right machine,and can also customise special machine as customer's requirement and special parts.
Sales following
During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.
After Sales
We will send technical go to customer's factory to install and adjust machine.
We have after-sell service to supply all life-time machine maintance and repairment service.
FAQ:
Q: Are we a trading firm or a manufacturer?
A: We are a MANUFACTURER.
Q: What’s our payment mode?
A: L/C, T/T
Q: Can machines be customized?
A: YES.
Q: How long is the warranty period?
A: 12 months.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
