Automatic Core Shooter

Automatic core shooting machine which is easy operate, working fast, and high quality of core . saving workers and increase the production capacity.

  • Item NO.:

    361-A
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Market Price:

    $4700
  • Price:

    $3100
  • Product Origin:

    CHINA
  • Color:

    GREY
  • Shipping Port:

    XIAMEN
  • Lead Time:

    20 DAYS
Product Details

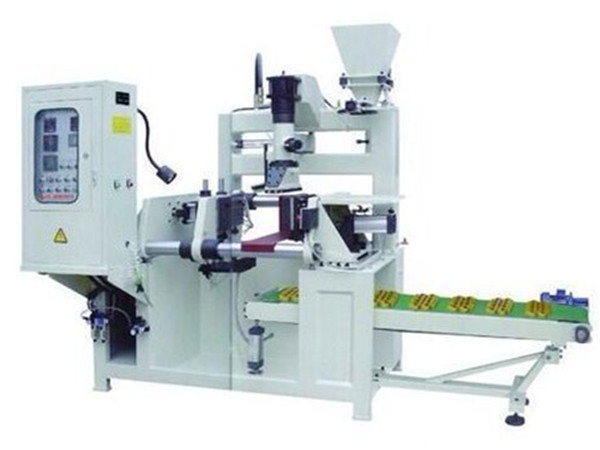

Automatic core shooting machine

Main Function Features Of Machinery


1. Horizontal parted type,fetching core manually.

2. three kinds of function manual,single-circle automatic, automatic circulation.

3.It can shooting sand simultaneously in two sides, big moulding board, electric heating, high efficiency.

4.Die adjustment margin is set to make it easy to use different dies and lower the requirements of die exterior physical dimension.

5. The shooting head rotates for 50° to receive sand, it is easy to clean the shooting hole manually.

6.Automatic core shooter can be plainly moved as a whole.

7. The machine can be plainly moved as a whole.


We have the whole production line machines to widely processing in plumbing, sanitaryware,car spares, valves, iron cast lines and so on

Greatest Weight of sand cores

6kg

the biggest size of core boxes

400*280*200mm

itinerary of plunger under pressure

≤30mm

the longest itinerary of core-pull guide bar

150mm

net weight of the whole machine

1543kg

heating power

9.6kw

size of appearance of machine

3500*1480*2350mm

transmission speed

72mm/s

increased angle of nylon conveying band

2° - 4°

size of heating plate ( L x W )

350 * 200 mm

nylon conveying band ( L x W x H )

2200 * 400 * 100 mm



Automatic Core Shooting Machine

Automatic Core Shooting Machine


Our Service:

Before sales
Our professional technical recommend the right machine,and can also customise special machine as customer's requirement and special parts.

Sales following
During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.

After Sales

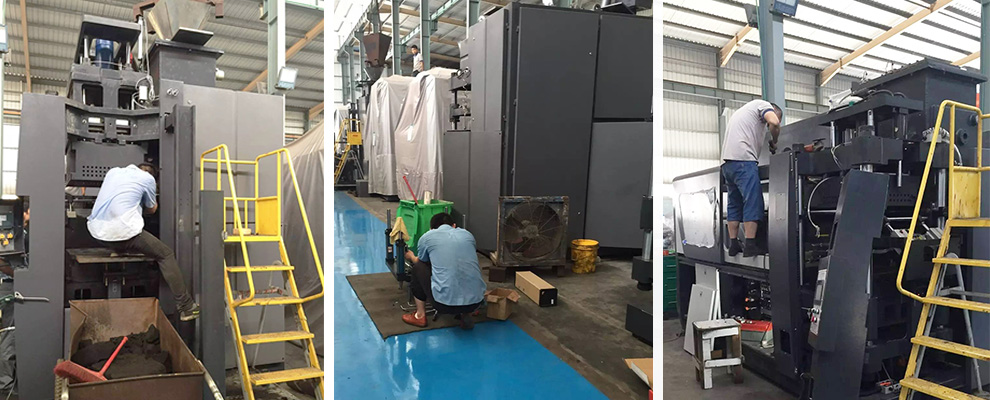

We will send technical go to customer's factory to install and adjust machine.

We have after-sell service to supply all life-time machine maintance and repairment service.


FAQ:

Q: Are we a trading firm or a manufacturer?

A: We are a MANUFACTURER.

Q: What’s our payment mode?

A: L/C, T/T

Q: Can machines be customized?

A: YES.

Q: How long is the warranty period?

A: 12 months.
