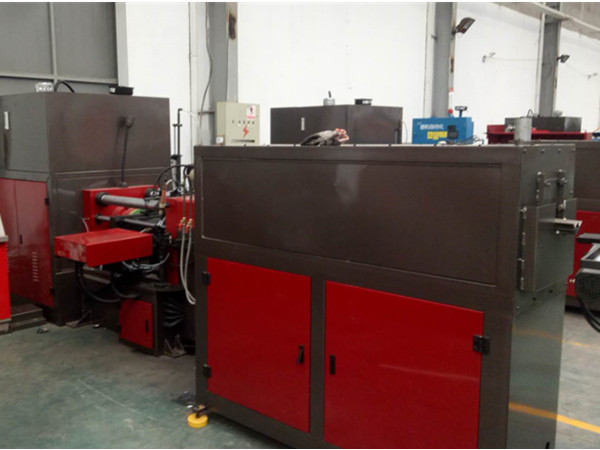

Hydraulic Hot Extrusion Equipment
Extrusion is a process used to create objects of a fixed cross sectional profile. A material is pushed through a die of the desired cross-section.
Item NO.:
YHW120T-250Order(MOQ):
1Payment:
TT/LCProduct Origin:
CHINAColor:
REDShipping Port:
XIAMENLead Time：
30 DAYSHydraulic Hot Extrusion Equipment
Extrusion may be continuous (theoretically producing indefinitely long material) or semi-continuous (producing many pieces). The extrusion process can be done with the material hot or cold. Commonly extruded materials include metals,polymers,ceramics,concrete,modellingclay,and foodstuffs. The products of extrusion are generally called "extrudates".
Also referred to as "hole flanging", hollow cavities within extruded material cannot be produced using a simple flat extrusion die, because there would be no way to support the centre barrier of the die. Instead, the die assumes the shape of a block with depth, beginning first with a shape profile that supports the center section. The die shape then internally changes along its length into the final shape, with the suspended center pieces supported from the back of the die. The material flows around the supports and fuses together to create the desired closed shape.
The extrusion process in metals may also increase the strength of the material.
|
Model No. Name |
Unit |
YHW120T-250 Hydraulic Machine |
|
|
Type |
|
Four-column horizontal |
|
|
Yield |
pc∕min |
15-18 |
|
|
Nominal pressure |
KN |
1200 |
|
|
Liquid working pressure |
Mpa |
≦23 |
|
|
Head pressure trip |
mm |
250 |
|
|
Speed of work |
mm∕s |
0-100 |
|
|
No-load speed |
mm∕s |
0-360 |
|
|
working desk size |
from beginning to end |
mm |
660 |
|
|
left and right |
mm |
660 |
|
|
thickness |
mm |
120 |
|
The basic size |
length |
mm |
2460 |
|
|
width |
mm |
1080 |
|
Dimensions |
length |
mm |
3400 |
|
|
width |
mm |
1800 |
|
|
height |
mm |
2100 |
|
The distance between two columns |
mm |
500 |
|
|
Distance between two boards |
mm |
920 |
|
|
Platen hole diameter |
mm |
275 |
|
|
Die height |
mm |
670 |
|
|
Weight |
Kg |
3500 |
|
|
Power |
KW |
22 |
|
|
Core diameter |
mm |
98/108/118 |
|
|
Model No. Specification |
Hydraulic hoist |
Oil, gas furnace |
|
length（mm） |
1750 |
1860 |
|
width（mm） |
1260 |
570 |
|
height（mm） |
1450 |
1600 |
|
Weight（kg） |
500 |
500 |
Our Service:
Before sales
Our professional technical recommend the right machine,and can also customise special machine as customer's requirement and special parts.
Sales following
During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.
After Sales
We will send technical go to customer's factory to install and adjust machine.
We have after-sell service to supply all life-time machine maintance and repairment service.
FAQ:
Q: Are we a trading firm or a manufacturer?
A: We are a MANUFACTURER.
Q: What’s our payment mode?
A: L/C, T/T
Q: Can machines be customized?
A: YES.
Q: How long is the warranty period?
A: 12 months.
